Overview

There are two types of BioMass Production in this case.
1. Biomass Processing from Green Waste
2. Biomass Processing from Logs

1. Biomass Processing from Green Waste
NPUT: Green Waste

OUTPUT: Biomass < 20 – 100 mm (0.8 – 4'')

Biomass is the whole organic substance produced by plants or animals. A distinction is made between solid and fluid sources of bioenergy. While in the past the focus was on recycling, today the development centers on energy recovery. In the field of biomass processing we focus on the recovery of green waste, root timber, garden waste, branches and logs.

PLANT EXAMPLE

Input material: biomass
Throughput: > 10 t/h
Output grain size: < 60 mm (2.4'')
Utilization output: thermal utilization, recycling (fine fraction)

PROCESS DESCRIPTION (example)

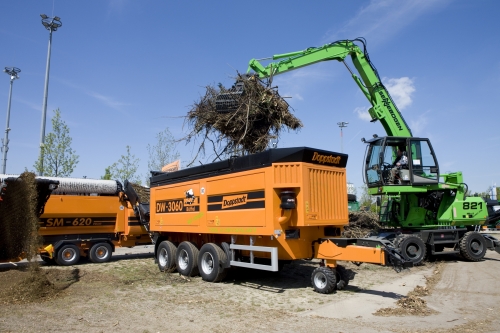

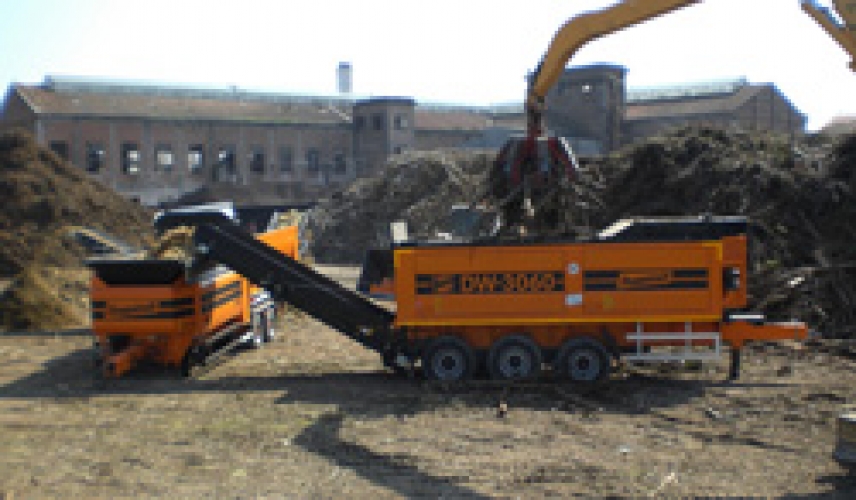

The input material is charged into the shredder DW 3060 by wheel loader or excavator. During this step, a first pre-sorting is carried out and large contaminants such as metal and rocks can be sorted out.

The DW 3060 can be equipped with an optional comb extension, which ensures a consistant shredding. After the shredding, iron parts are separated by means of an overband magnet.

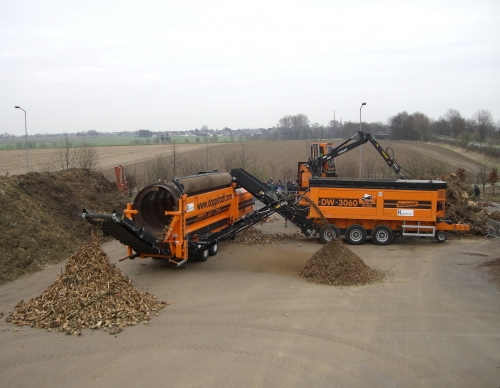

The material is finally screened to the desired grain size by means of the trommel screen SM 620 or a star screen. Fine fraction screening 0 – 20 mm (0 – 0.8''), grain size of the final product 20 – 100 mm (0.8 – 4'').

In order to achieve a pure product, it is also possible to separate the remaining iron parts from the fine fraction with an overband magnet.

2. Biomass Processing from Logs
INPUT: Tree Logs

OUTPUT: Wood Chips < 60 mm (2.4'')

In the field of biomass processing we focus on the recovery of green waste, root timber, garden waste, branches and logs. While in the past the focus was on recycling, today the development centers on energy recovery.

PLANT EXAMPLE

Input material: tree logs
Throughput: approx. 200 m3/h (7.063 ft3/h)
Output grain size: < 60 mm (2.4'')
Utilization output: thermal utilization, recycling

PROCESS DESCRIPTION (example)

The input material is charged into the precision chipper DH 910 by wheel loader or excavator. The grain size of the chips can quickly be regulated in the machine by choosing according screening segments.

The chipped product is discharged by means of an integrated impeller blower.
